3 DOOR STEEL ALMIRAH

About 3 DOOR STEEL ALMIRAH

3-Door Steel Almirah Specification

This document outlines the detailed specifications for a robust and functional 3-door steel almirah, optimized for secure storage and durable performance.

1. General Information

• Product Name: 3-Door Steel Almirah / Wardrobe
• Type: Freestanding Storage Unit
• Configuration: 3 doors, multi-compartment interior
• Material: High-Grade Cold Rolled Steel (CRS)
• Finish: Powder Coated (Electrostatic application for uniform and durable finish)
• Color: (To be specified, e.g., Cream, Grey, Brown, Ivory, etc.)

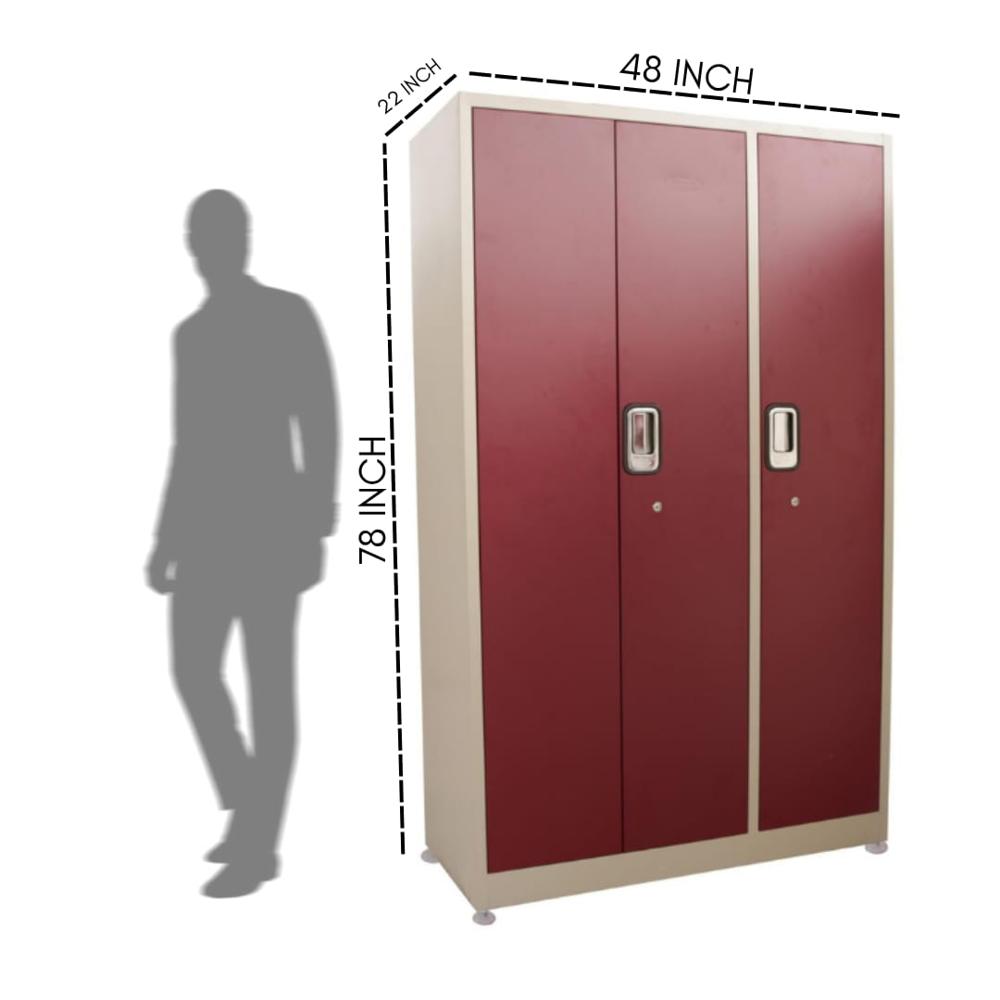

• Dimensions (External):
  • Width: 48 inches (approx. 1219 mm)
  • Depth: 22 inches (approx. 559 mm)
  • Height: 78 inches (approx. 1981 mm)

2. Construction Details

• Body:
  • Constructed from prime quality Cold Rolled Steel (CRS) sheets.
  • Sheet Thickness: Minimum 20 Gauge (SWG) for outer panels (top, bottom, sides, back). Reinforcement sections may use thicker gauges.
  • All panels are precisely cut, bent, and assembled for structural integrity.
  • Reinforced corners and edges for added strength and rigidity.
• Doors:
  • Number: 3 hinged doors.
  • Construction: Each door is double-paneled or box-type for enhanced strength and rigidity.
  • Hinges: Equipped with heavy-duty concealed or visible piano hinges/butt hinges (minimum 4 hinges per door) for smooth operation and long-term durability, preventing door sag.
  • Handles: Ergonomically designed, flush-mounted or surface-mounted steel/chrome-plated handles.
• Locking Mechanism:
  • Main Lock: Centralized multi-point locking system or individual high-security cam/lever locks on each door, operated by a master key or independent keys.
  • Internal Latch/Lock: Provision for internal latching mechanisms on slave doors (if applicable) to ensure secure closure.
  • Security: Designed to deter forced entry with robust lock components and reinforced door frames.
• Shelves:
  • Number: Typically 3-4 adjustable shelves (or fixed shelves as per design) per compartment.
  • Material: CRS, matching body gauge or slightly thicker for higher load bearing.
  • Adjustability: Slots/notches provided at regular intervals for vertical shelf adjustment, allowing customization of storage space.
  • Load Capacity: Each shelf designed to bear a minimum of 25-30 kg uniformly distributed load without visible deflection.
• Drawers (Optional/Integrated):
  • Number: 1-2 internal drawers, typically located in one of the compartments.
  • Slides: Smooth-gliding telescopic channels or roller slides for easy opening/closing, even when fully loaded.
  • Locking: Individual lock for the drawer (e.g., cam lock).
• Hanging Rod:
  • Location: Typically in one of the wider compartments.
  • Material: Sturdy steel pipe or square bar, chrome-plated or powder-coated.
  • Capacity: Capable of supporting a significant weight of clothes without bending.
• Base/Legs:
  • Integrated plinth base or sturdy steel legs for stability and protection against floor moisture.
  • Provision for leveling feet (adjustable glides) for uneven surfaces.

3. Key Features

• Security: High-security locking system ensuring the safety of stored belongings.
• Durability: All-steel construction with a robust powder-coated finish provides excellent resistance to corrosion, scratches, and wear.
• Space Optimization: Thoughtful internal layout with adjustable shelves and hanging space to maximize storage utility for various items including clothes, documents, and valuables.
• Aesthetics: Clean, contemporary design suitable for various interior decors. Smooth finish for a premium look.
• Maintenance: Easy to clean and maintain, requiring only a damp cloth.
• Ventilation: (Optional) Small ventilation louvers may be integrated on the top or side panels to prevent odor and moisture build-up.

4. Technical Specifications

• Steel Grade: IS 513 D or equivalent Cold Rolled Steel.
• Sheet Thickness:
  • Outer Body Panels: 20 SWG (0.91 mm)
  • Doors: 20 SWG (0.91 mm)
  • Shelves: 20 SWG (0.91 mm)
  • Internal Partitions/Reinforcements: 18-20 SWG (1.21-0.91 mm)
• Lock Type: High-security Godrej, Europa, or equivalent brand multi-point or individual cam/lever locks.
• Hinge Type: Heavy-duty Piano hinge or SS Butt hinges.
• Powder Coating: Epoxy Polyester or Pure Polyester powder coating, minimum 60-80 microns thickness. Tested for adhesion, hardness, and salt spray resistance.

5. Optional Features / Accessories

• Integrated Mirror: Full-length mirror affixed to the inside of one of the doors.
• Internal Locker/Safe: Small, securely locked compartment (often with an independent key) for valuables.
• Tie/Belt Rack: Internal fixture for organizing accessories.
• LED Lighting: Not included.
• Ventilation: Additional ventilation holes or louvers for improved air circulation.

6. Packaging and Delivery

• Packaging: Almirah will be delivered fully assembled or in knock-down (KD) condition with clear assembly instructions (if KD). Well-protected with appropriate packaging materials (e.g., corrugated sheets, foam, stretch film) to prevent transit damage.
• Delivery: Standard delivery and installation (if applicable) at the specified location.

7. Warranty and Standards

• Manufacturing Warranty: 5 Years manufacturing warranty against defects in material and workmanship.
• Anti-Rust Guarantee: 5 Years anti-rust guarantee for the powder-coated steel body under normal usage conditions.
• Compliance: Manufactured in accordance with relevant industry standards for steel furniture.
